Others
Note: Some of the properties reflected are not feasible with Multi-Cloud version of Gathr. These properties are marked with **
Miscellaneous configurations properties left of the Web Studio. This category is further divided into various sub-categories.
LDAP
| Field | Description |
|---|---|
| Password | Password against which the user will be authenticated in LDAP Server. |
| Group Search Base | Defines the part of the directory tree under which group searches will be performed. |
| User Search Base | Defines the part of the directory tree under which DN searches will be performed. |
| User Search Filter | The filter which will be used to search DN within the User Search Base defined above. |
| Group Search Filter | The filter which is used to search for group membership. The default is member={0 corresponding to the groupOfMembers LDAP class. In this case, the substituted parameter is the full distinguished name of the user. The parameter {1} can be used if you want to filter on the login name. |
| Admin Group Name | LDAP group name which maps to application’s Admin role. |
| Developer Group Name | LDAP group name which maps to application’s Developer role. |
| Devops Group Name | LDAP group name which maps to application’s Devops role. |
| Tier-II Group Name | LDAP group name which maps to application’s Tier-II role. |
| LDAP Connection URL | URL of the LDAP server is a string that can be used to encapsulate the address and port of a directory server. For e.g. - ldap://host:port. |
| User Distinguished Name | A unique name which is used to find the user in LDAP Server. |
Okta
| Field | Description |
|---|---|
| redirectUri | Complete Gathr URL where user lands after successfully authenticate on Okta. |
| baseUrl | Okta base URL where Gathr application is configured for SSO authentication. |
| clientId.password | Client Id of registered Gathr application on Okta. |
| clientSecret.password | Client Secret of registered application on Okta. |
| apiToken.password | API Token generated from Okta for REST API communication. |
| Scope | Space-separated list of scopes to define permissions: openid email profile offline_access. |
| oktaGroupsOnly | Enable to restrict access to users/groups belonging to Okta groups only, excluding users/groups from other providers like LDAP. |
| singleSignOut | Enable single sign-out (SLO) functionality with Okta. It ensures user logged out from all Okta authenticated applications when logging out from Gathr. |
| groupname.admin.role | Okta group name which maps to application’s Admin role. Example SAX-PROD-SUPER |
| Single Sign Out (SLO) Functionality | We have added support single Sign out functionality on Gathr, by default it false. To make it enable, we need to set singleSignOut: true in env-config.yaml. |
If SLO is enabled and user logout from any okta application and those applications invalidated the user session then, he/she will logout from Gathr application as well and vise versa.
Next, enter the Configuration page from the main menu and navigate to Security tab.
Update the below fields by selecting Okta from the drop-down menu.
| Field | Description |
|---|---|
| User Authentication Source | Select Okta from the drop-down list. |
| User Authorization Source | Select Okta from the drop-down list. |
| Superuser (Seed User) Authentication Source | Select Okta from the drop-down list. |
| Superuser Email ID | Select Okta from the drop-down list. |
Click Save.
Start Gathr using the below command.
./startServicesServer.sh -config.reload=true -auth.source=sso
Activiti
| Field | Description |
|---|---|
| Alert Email Character Set | The character set used for sending emails. |
| Alert Sender Email | The email address from which mails must be sent. |
| JDBC Driver Class | The database driver used for activity setup. |
| JDBC URL | The database URL for activity database. |
| JDBC User | The database user name. |
| JDBC Password | JDBC Password. |
| Host | The email server host from which emails will be sent |
| Port | The email server port. |
| User | The email id from which emails will be sent. |
| Password | The Password of the email account from which emails will be sent. |
| Default Sender Email | The default email address from which mails will be sent if you do not provide one in the UI. |
| Enable SSL | If SSL (Secure Sockets Layer) is enabled for establishing an encrypted link between server and client. |
| Enable TSL | If Transport Layer Security (TLS) enables the encrypted communication of messages between hosts that support TLS and can also allow one host to verify the identity of another. |
| History | Activiti history is needed or not. |
| Database | The database used for activity setup. |
Couchbase
| Field | Description |
|---|---|
| Max Pool Size ** | The Couchbase Max Pool Size. |
| Default Bucket Memory Size ** | The memory size of default bucket in Couchbase. |
| Password ** | The Couchbase password. |
| Default Bucket Replica No ** | The Couchbase default bucket replication number. |
| Host Port ** | The port no. of Couchbase. |
| Host Name ** | The host on which the Couchbase is running. |
| HTTP URL ** | The Couchbase http URL. |
| Bucket List ** | The Couchbase bucket list. |
| Polling timeout ** | The polling timeout of Couchbase. |
| Polling sleeptime ** | The sleep time between each polling. |
| User Name ** | The username of the Couchbase user. |
Kerberos
| Field | Description |
|---|---|
| Hadoop NameNode Kerberos Principal | Service principal of name node. |
| Kerberos Configuration File Override | Set to true if you want the keytab_login.conf file to be (re)created for every running pipeline when Kerberos security is enabled. |
| Hadoop Core Site Location | The property should be used when trying to connect HDFS from two different realms. This property signifies the path of Hadoop core-site.xml containing roles for cross-realm communications. |
| Hbase Master Kerberos Principal | Service principal of HBase master. |
| ResourceManager Kerberos Principal | Service principal of resource manager |
| Hbase Regionserver Kerberos Principal | Service principal of region server. |
| Hive Metastore Kerberos principal | Service principal of Hive metastore. |
| HiveServer2 Kerberos Principal | Service principal of hive server 2 |
Configuring Kerberos
You can add extra Java options for any Spark Superuser pipeline in following way:
Login as Superuser and click on Data Pipeline and edit any pipeline.
Kafka
HDFS
HBASE
SOLR
Zookeeper
Configure Kerberos

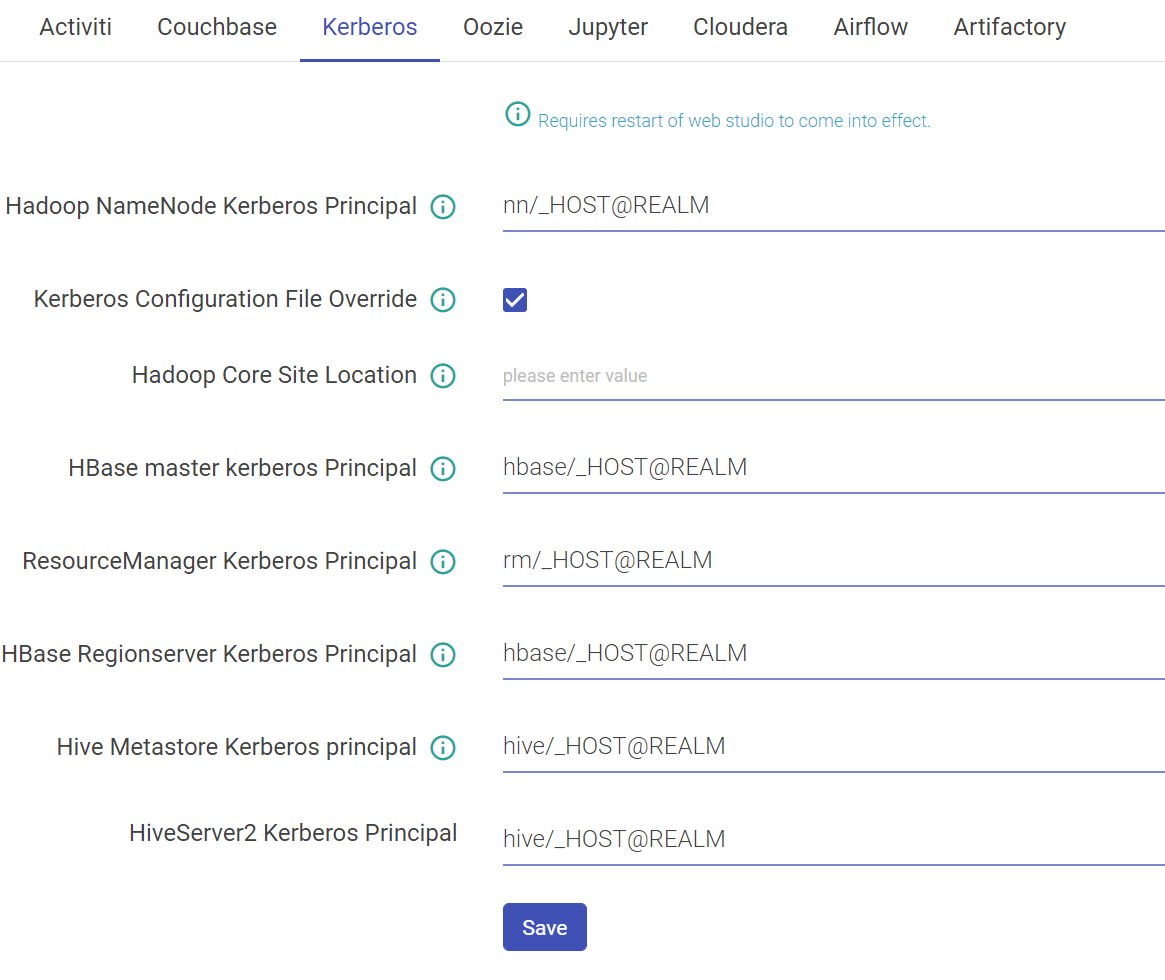

Once Kerberos is enabled, go to Superuser UI > Configuration > Environment > Kerberos to configure Kerberos.
Configure Kerberos in Components

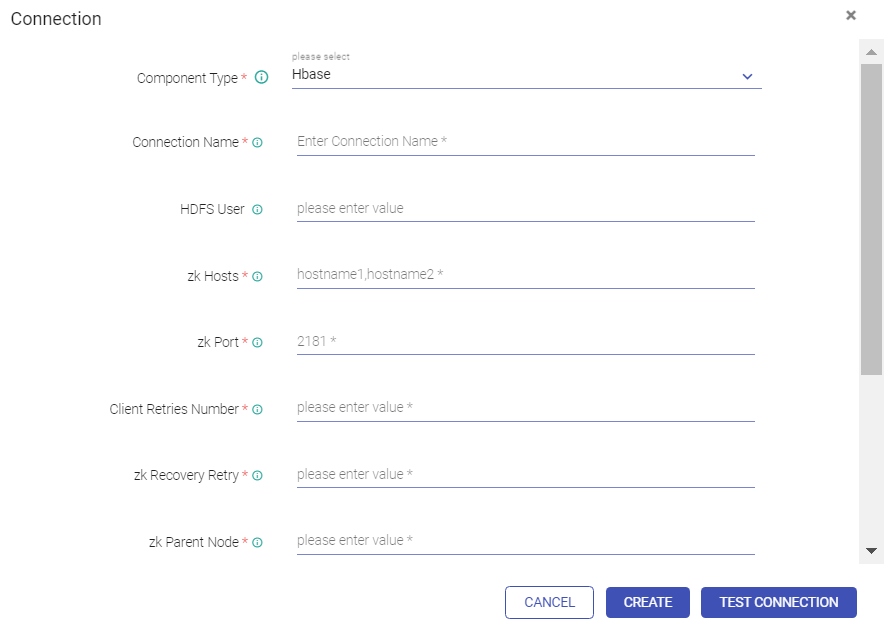

Go to Superuser UI > Connections, edit the component connection settings as explained below:
HBase, HDFS
| Field | Description |
|---|---|
| Key Tab Select Option | A Keytab is a file containing pair of Kerberos principals and encrypted keys. You can use Keytab to authenticate various remote systems. It has two options: Specify Keytab File Path: Path where Keytab file is stored Upload Keytab File: Upload Keytab file from your local file system. |
| Specify Keytab File Path | If the option selected is Specify** Keytab File Path,** system will display the field** KeyTab File Path where you will specify the keytab file location. |
| Upload Keytab File | If the option selected is Upload** Keytab File**,** system will display the** field** Upload Keytab File that will enable you to upload the Keytab file. |
By default, Kerberos security is configured for these components: Solr, Kafka and Zookeeper. No manual configuration is required.
For Solr, Kafka and Zookeeper, Security is configured by providing principals and keytab paths in keytab\_login.conf. This file then needs to be placed in Gathr/conf/common/kerberos and Gathr/conf/thirdpartylib folders.
Jupyter
| Field | Description |
|---|---|
| jupyter.hdfs.port | HDFS Http port. |
| jupyter.hdfs.dir | HDFS location where uploaded data will be saved. |
| jupyter.dir | Location where notebooks will be created. |
| jupyter.notebook.service.port | Port on which Auto create Notebook service is running. |
| jupyter.hdfs.connection.name | HDFS connection name use to connect HDFS (from gathr connection tab). |
| jupyter.url | URL contains IP address and port where Jupyter services are running. |
Cloudera
| Property | Description |
|---|---|
| Navigator URL | The Cloudera Navigator URL. |
| Navigator API Version | The Cloudera Navigator API version used. |
| Navigator Admin User | The Cloudera navigator Admin user. |
| Navigator User Password | The Cloudera navigator Admin user password. |
| Autocommit Enabled | Specifies of the auto-commit of entities is required. |
Airflow
| Property | Description |
|---|---|
| Enable AWS MWAA | Option to enable AWS Managed Airflow for gathr. It is disabled by default. |
If Enable AWS MWAA is check-marked, additional fields will be displayed as given below:
| Region | AWS region should be provided where MWAA environment is created. |
| Provider Type | Option to choose AWS credentials provider type. |
| AWS Access Key ID | AWS account access key ID should be provided for authentication if Provider Type is selected as AWS keys. |
| AWS Secret Access Key | AWS account secret access key should be provided for the Access Key ID specified above. The available options to choose from the drop-down list are: None, AWS Keys and Instance Profile. |
| Environment Name | Exact AWS environment name should be provided that is required to be integrated with gathr. |
| Gathr Service URL | Default URL where gathr application is installed. This should be updated for any modifications done to the gathr base URL. |
| DAG Bucket Name | Exact DAG bucket name should be provided that is configured in the environment specified above. |
| DAG Path | DAG path should be provided for the bucket name specified above. |
If Enable AWS MWAA is un-check, the below fields will be displayed:
| Airflow Server Token Name | It is the key that is used to authenticate a request. It should be same as the value given in section Plugin Installation>Authentication for property ‘sax_request_http_token_name’ |
| Airflow Server Token Required | Check if the token is required. |
| Airflow Server Token Value | HTTP token to authenticate request. It should be same as the value given in section Plugin Installation > Authentication for property ‘sax_request_http_token_value’ |
| Airflow Server URL | Airflow URL to connect to Airflow. |
