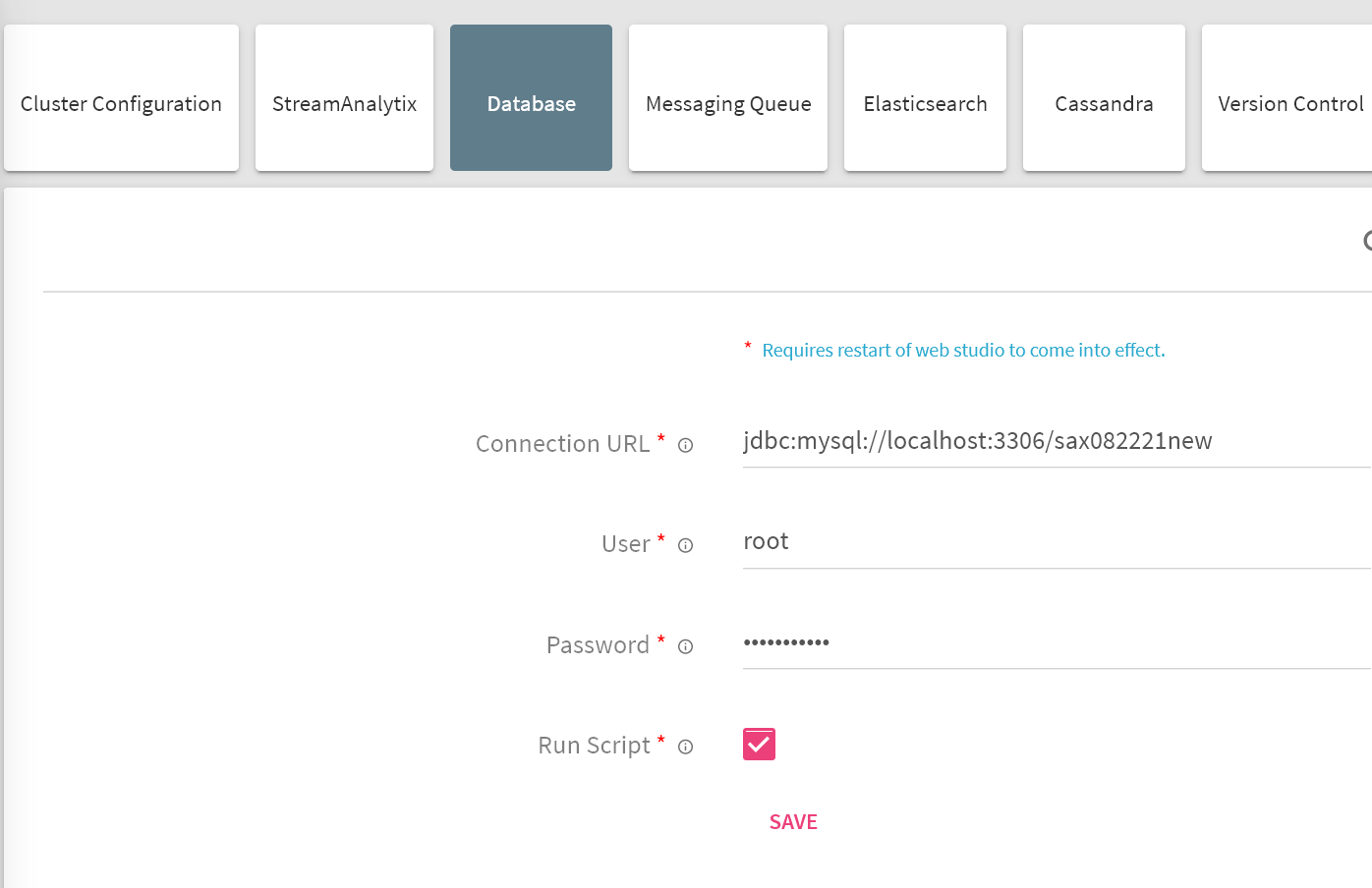

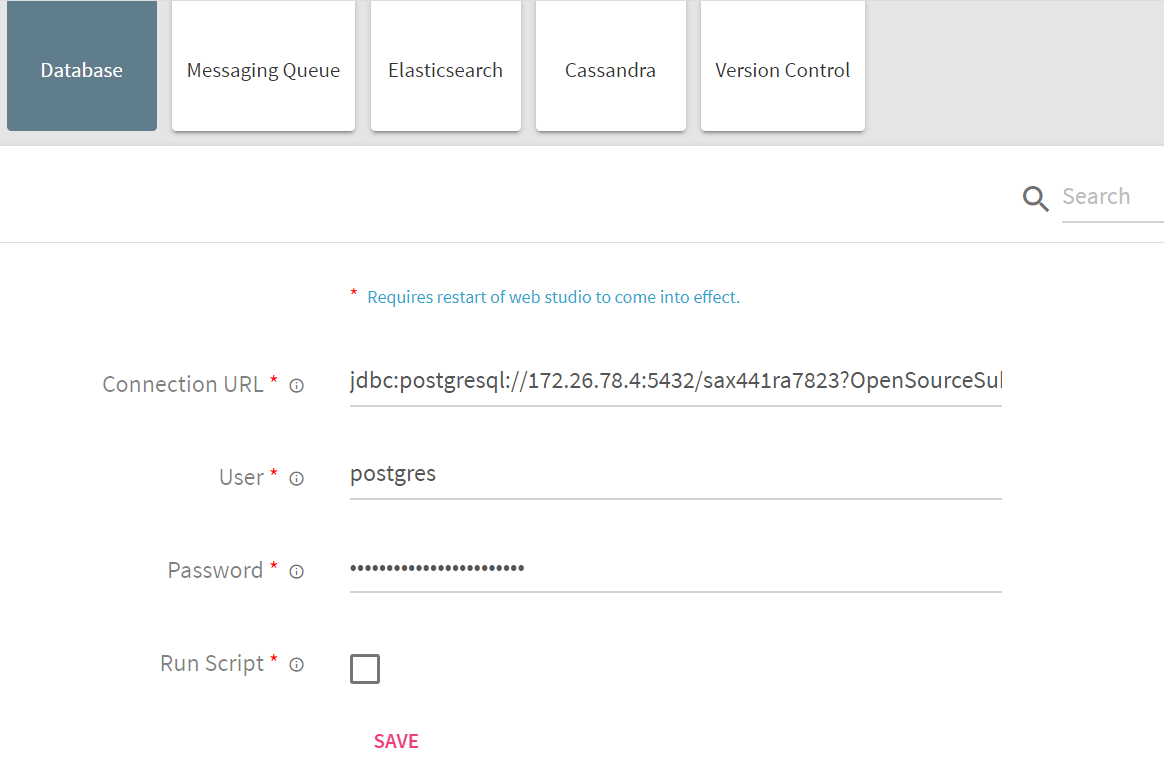

Connection URL

Provide the JDBC connection URL.

Supported Database deployment are PostgreSQL, Oracle, MySQL and MSSQL.

jdbc:postgresql://<db_host>:<db_port>/streamanalytix.

User

Provide username.

Password

Provide password.

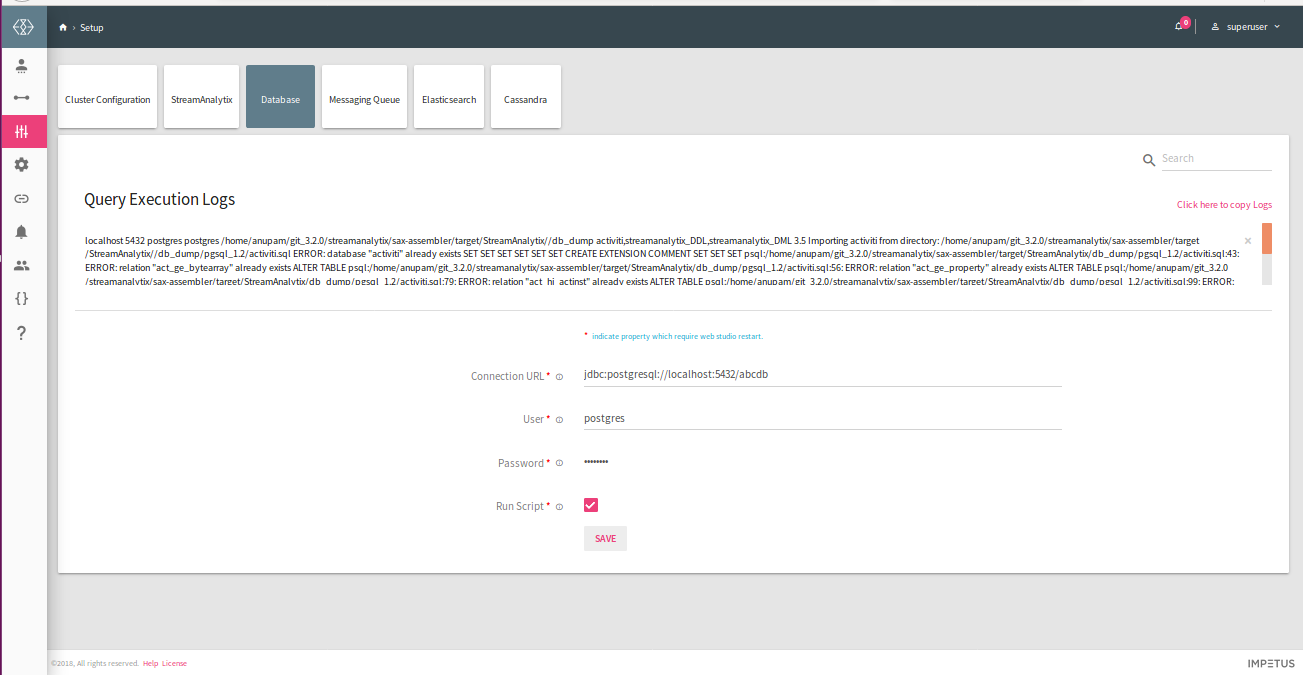

Run Script

Select run script option if all the SQL scripts needs to be executed into the configured database.

Run script will execute all the SQL scripts (DDL & DML) in configured RDBMS database, however with 3.2 version of SAX, follow the below mentioned note.

Note:

1. Before selecting Run Script, psql (PostgreSQL DB) or MySQL(MySQL DB) client should be installed.

2. Manually run both DDL and DML SQL scripts belongs to the folder named <SAX_HOME/db_dump/<RDBMS_3.2>, since it is not executed automatically with Run Script option.
