Installation Guide

Introduction

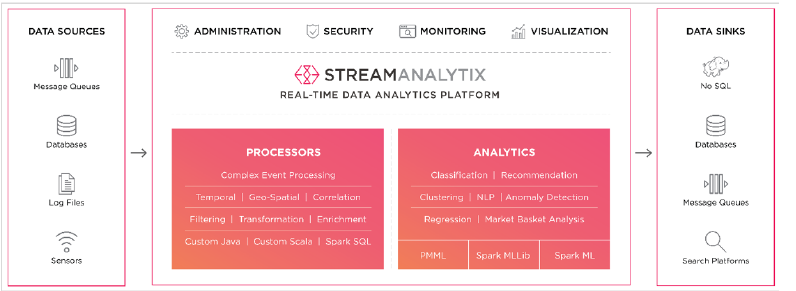

StreamAnalytix platform enables enterprises to analyze and respond to events in real-time at Big Data scale. With its unique multi-engine architecture, StreamAnalytix provides an abstraction that offers a flexibility to execute data pipelines using a stream processing engine of choice depending upon the application use-case, con­sidering the advantages of Storm or Spark Streaming based upon processing meth­odology (CEP, ESP) and latency.

Objective of the document

The objective of this document is to install StreamAnalytix and configure various infrastructure components that would interact in StreamAnalytix pipelines.

Assumptions

 1. User of this document is well acquainted with Linux systems and has fair knowl­edge of UNIX commands.

 2. User has sudo rights or is working as a root user.

 3. User has installed yum, rpm, unzip, tar and wget tools.

Overview

StreamAnalytix web studio provides a web interface to create, deploy and manage data processing and analytical flows. These data flows utilize services that are part of the big data cluster. Cluster managers like Ambari manage majority of these services (for HDP). The web studio needs to be configured correctly to enable data pipelines to interact with the services.

StreamAnalytix web studio provides a simple way to configure these service proper­ties as part of a post-deployment setup process.

Managed services such as YARN, Zookeeper can be configured by simply providing Ambari information in the setup screen. Properties for services that are not part of the managed cluster can be configured by entering the values manually.

Pre-requisites

Before beginning with the installation please see supported technology stack in Appendix 1.

An HDP, CDH or Apache based cluster with the version described in Appendix 1 must be available for StreamAnalytix to work properly. Livy/Local service is required to create pipelines in StreamAnalytix.

The pre-requisites mentioned in Appendix 1 must be deployed before proceeding further.

Embedded StreamAnalytix

StreamAnalytix Webstudio can be manually configured during deployment process. This requires changing few configuration files manually.

Alternatively, a simpler way is to start the Webstudio in embedded mode. This enables the user to configure StreamAnalytix from the UI. Configuring and restarting StreamAnalytix can switch the webstudio to cluster mode.

Embedded mode requires two services Zookeeper and Qpid, these packages are bundled in the StreamAnalytix binary and do not need additional setup.

Steps to Run

1. Extract the StreamAnalytix bundle and go to the extracted location in a terminal.

2. This location is called as StreamAnalytix installation directory.

3. Run the below command to start Webstudio.

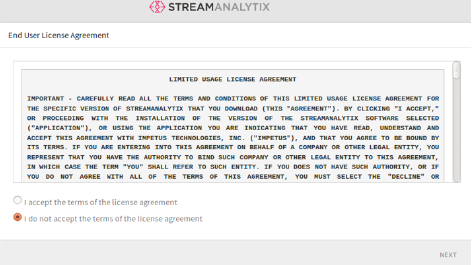

Once the command executes, an EULA page opens.

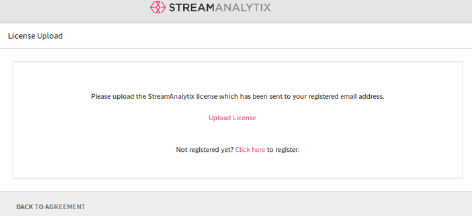

4. Accept the license and hit Next button. Upload License page opens.

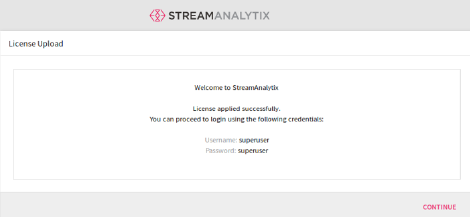

5. Upload the license and confirm. Next page is the login page of StreamAnalytix.

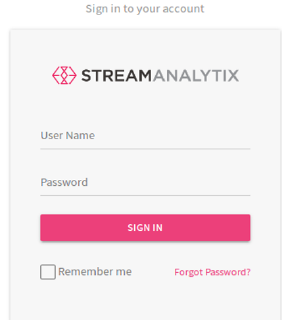

6. Login page is displayed.

Setup

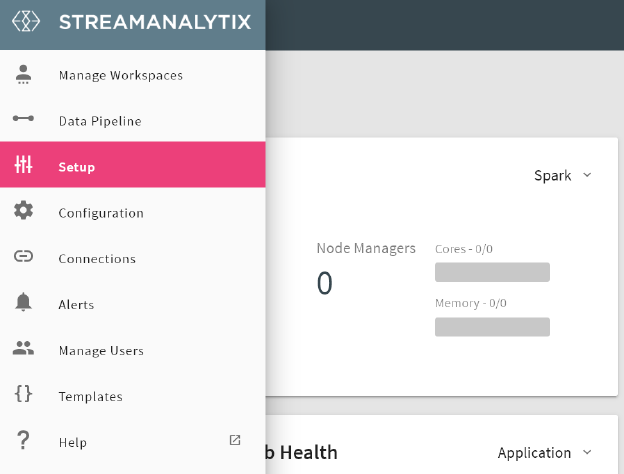

1. Navigate to setup page on the sidebar.

2. Setup page contains various tabs - Cluster Configuration, StreamAnalytix, Data­base, Messaging Queue, Elasticsearch, Cassandra and Version Control.

Cluster Configuration

StreamAnalytix enables automated configuration if the cluster is an HDP or CDH cluster.

Log in StreamAnalytix and go to Setup, select Cluster Configuration and enter login details for the cluster manager. On clicking Save – all the managed services will be fetched.

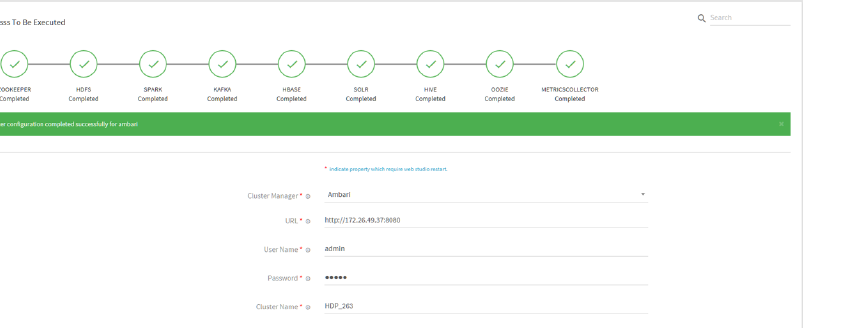

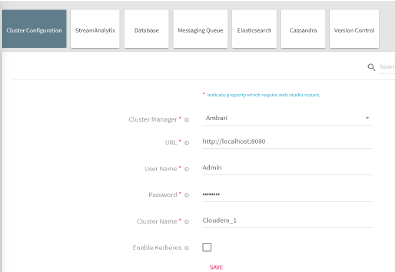

For HDP Using Ambari

Click Save and configure all managed services that are supported in StreamAnalytix with its progress.



Note: Livy configuration is not supported through setup simplification process; please make sure that StreamAnalytix is pointing to correct Livy URL which is as fol­lows.

Livy URL for HDP -> http://localhost:8999

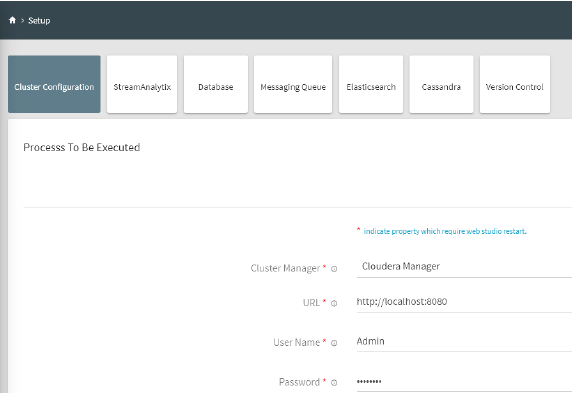

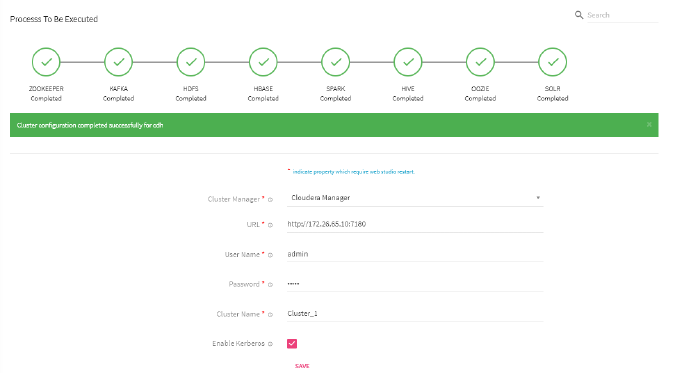

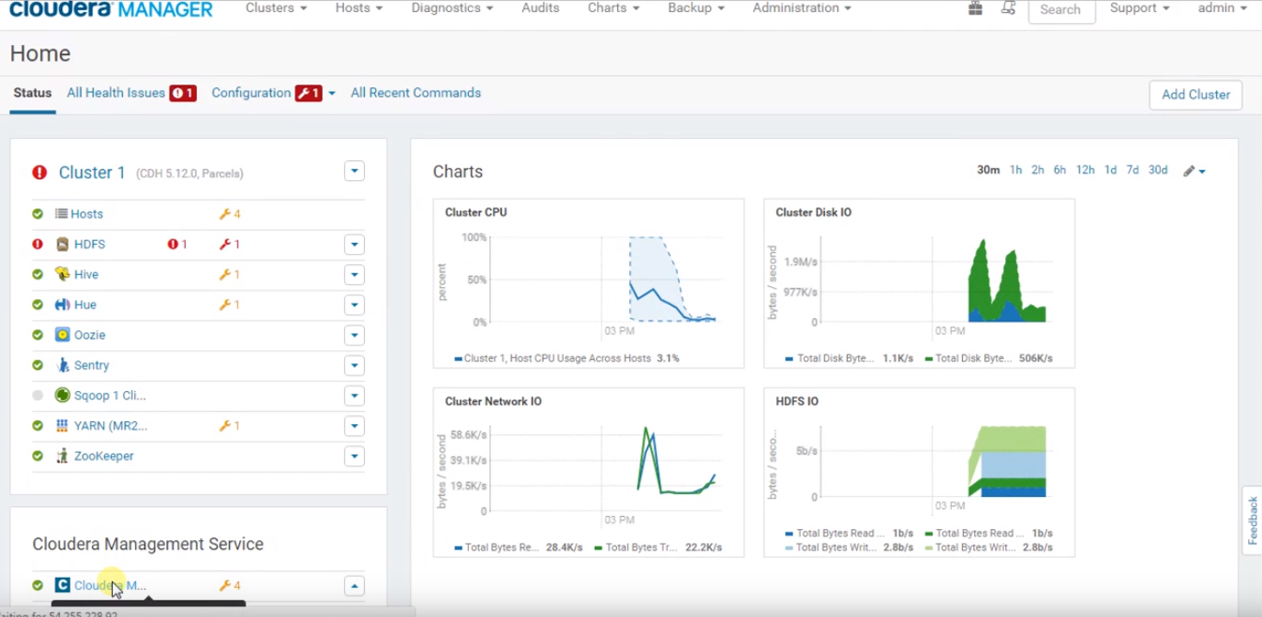

For CDH Using Cloudera Manager



Click Save and configure all managed services that are supported in StreamAnalytix with its progress.

Note: Livy configuration is not supported through setup simplification process; please make sure that StreamAnalytix is pointing to correct Livy URL which looks as follows:

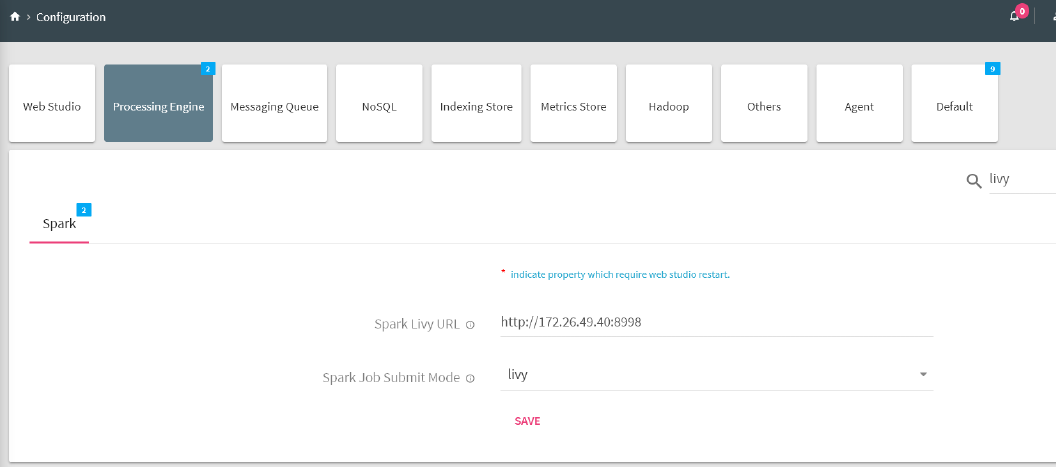

Livy URL for CDH/Apache: http://localhost:8998

For Apache

Login to StreamAnalytix using Superuser credentials and go to Configuration from left navigation pane.

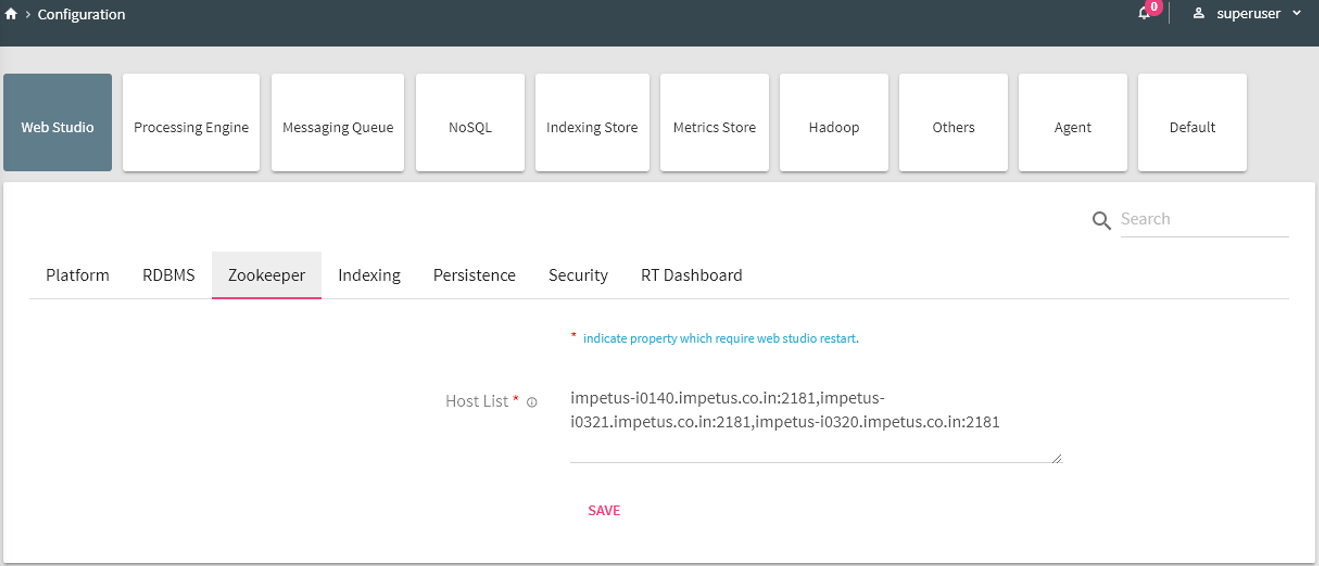

1. Select Web Studio tile and click on Zookeeper tab.



Provide value of following property:

Save the changes by clicking on Save.

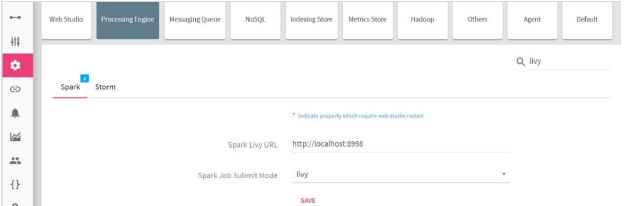

2. Select Processing Engine tab and click on Spark tab.

Provide values for the following properties to point StreamAnalytix to an external cluster:

Save the changes by clicking on Save.

Configure StreamAnalytix with HTTPS

1. Get keystore.jks and truststore.jks certificates.

2. Import these certificates in $JAVA_HOME/jre/lib/security/cacerts

Example: keytool -import -alias cmagent_<hostname> -file <path of the file> /<file­name> -keystore $JAVA_HOME/jre/lib/security/jssecacerts -storepass changeit

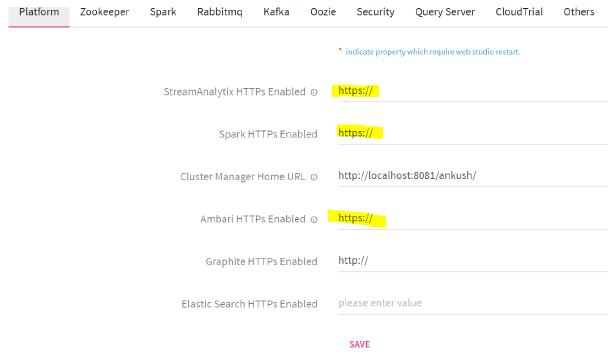

3. Update the below mentioned configuration under Configuration< Processing Engine< Spark.Change the Resource manager WEB port from 8088 to 8190 or the port number of Resource Manager.

5. If either of the services are running on HTTPS, StreamAnalytix, Spark or Ambari, respectively you can configure the same under configuration:



Livy Properties

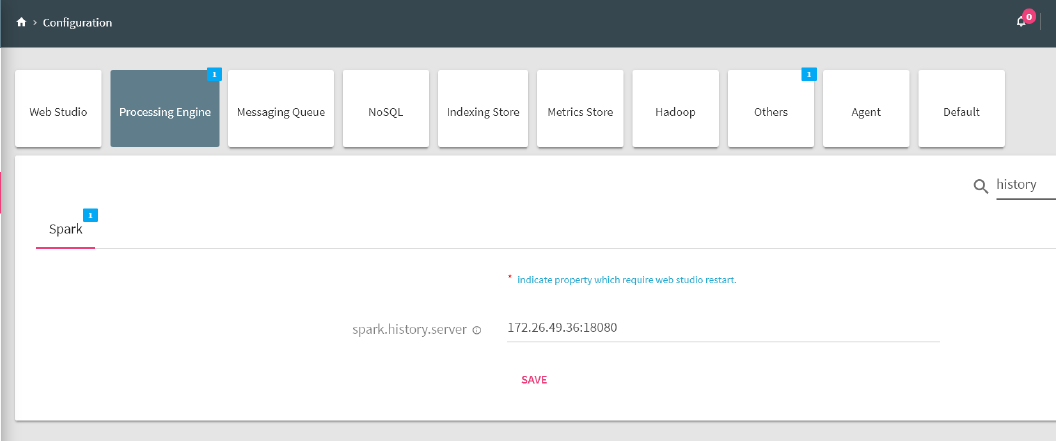

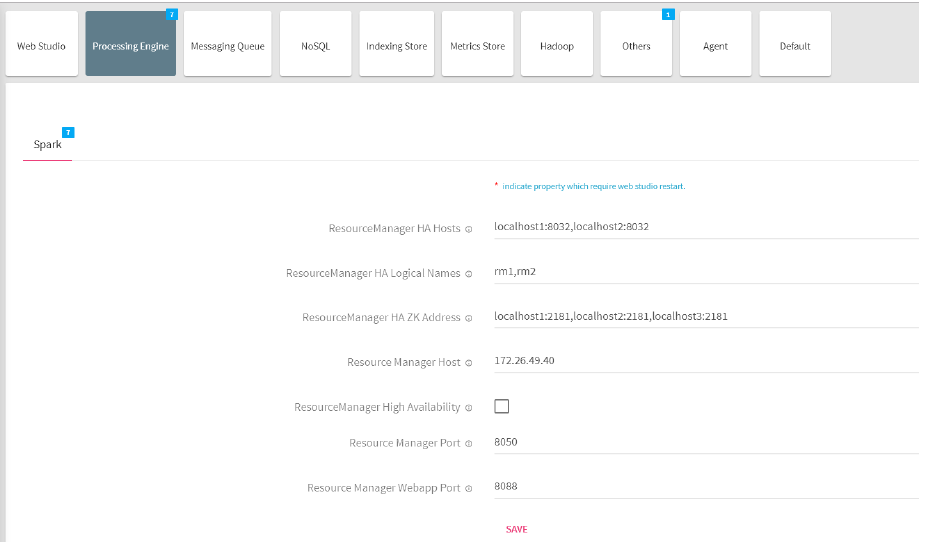

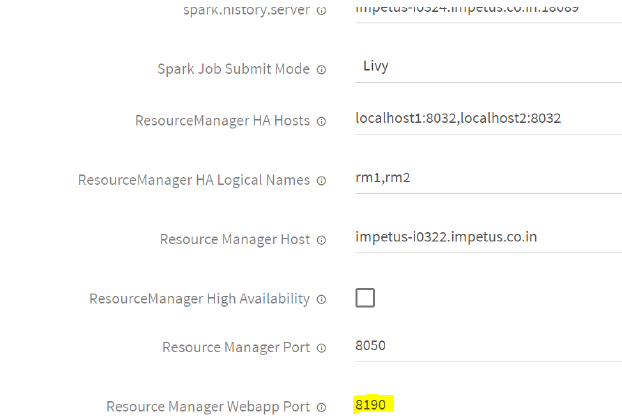

History and Resource Properties

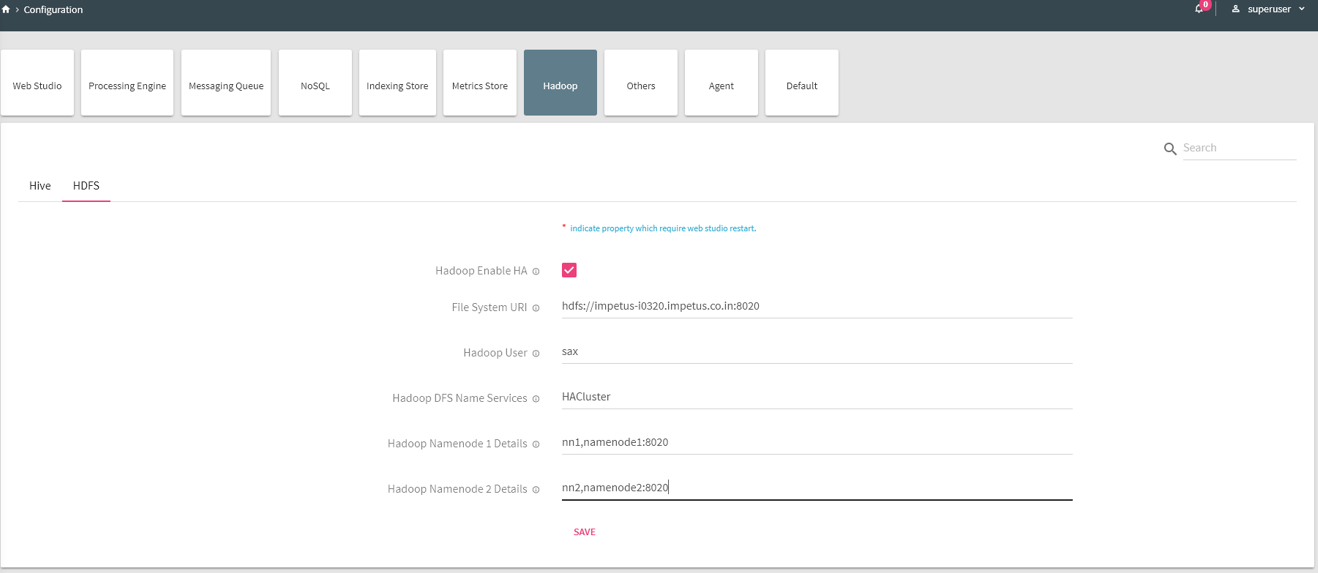

3. Select Hadoop tab and click on HDFS tab.



Provide values of following properties:

Save the changes by clicking on Save.

4. Now login to terminal on node where StreamAnalytix web studio is installed. Fol­low below steps:

a. Go to <<StreamAnalytix_installation_dir>>/conf

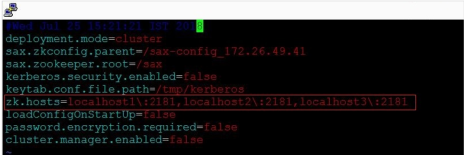

b. Edit config.properties file and provide value of highlighted property ‘zk.hosts’:

Note: Checkpointing is required to run pipeline on a standalone deployment.



StreamAnalytix Miscellaneous Properties

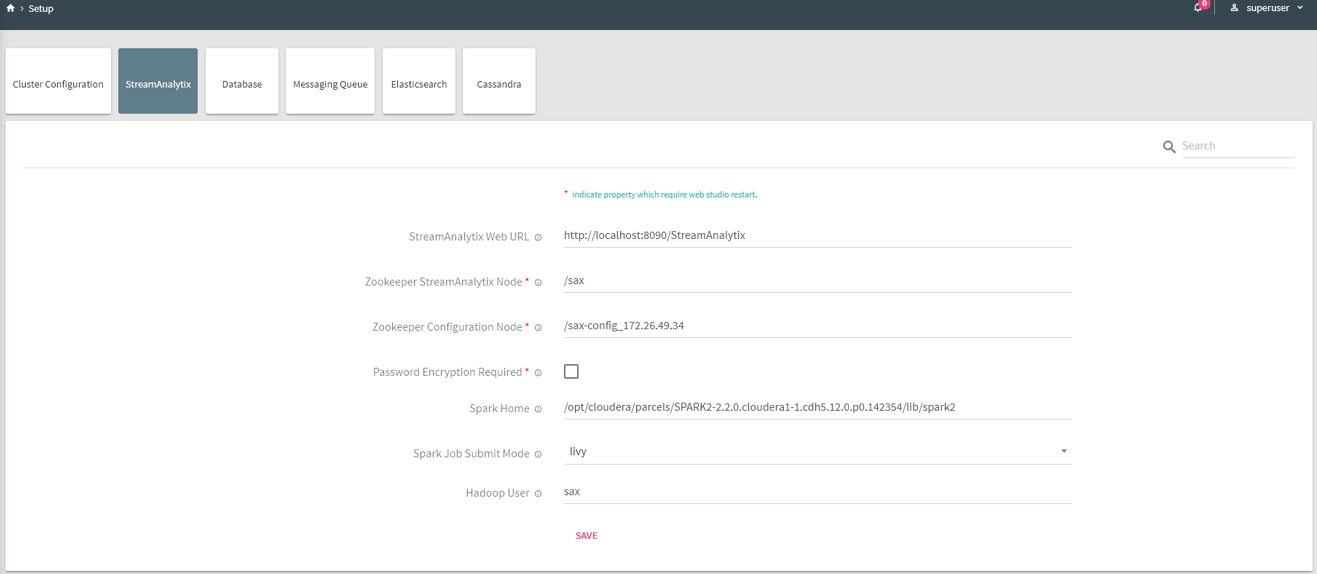

1. Go to Setup from left navigation pan and click on StreamAnalytix tab.



Provide values for following properties:

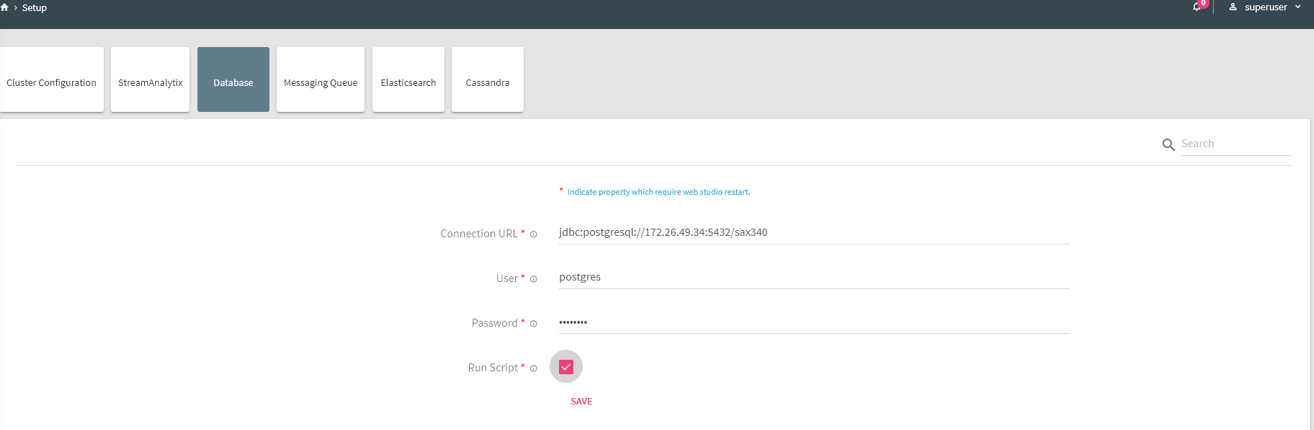

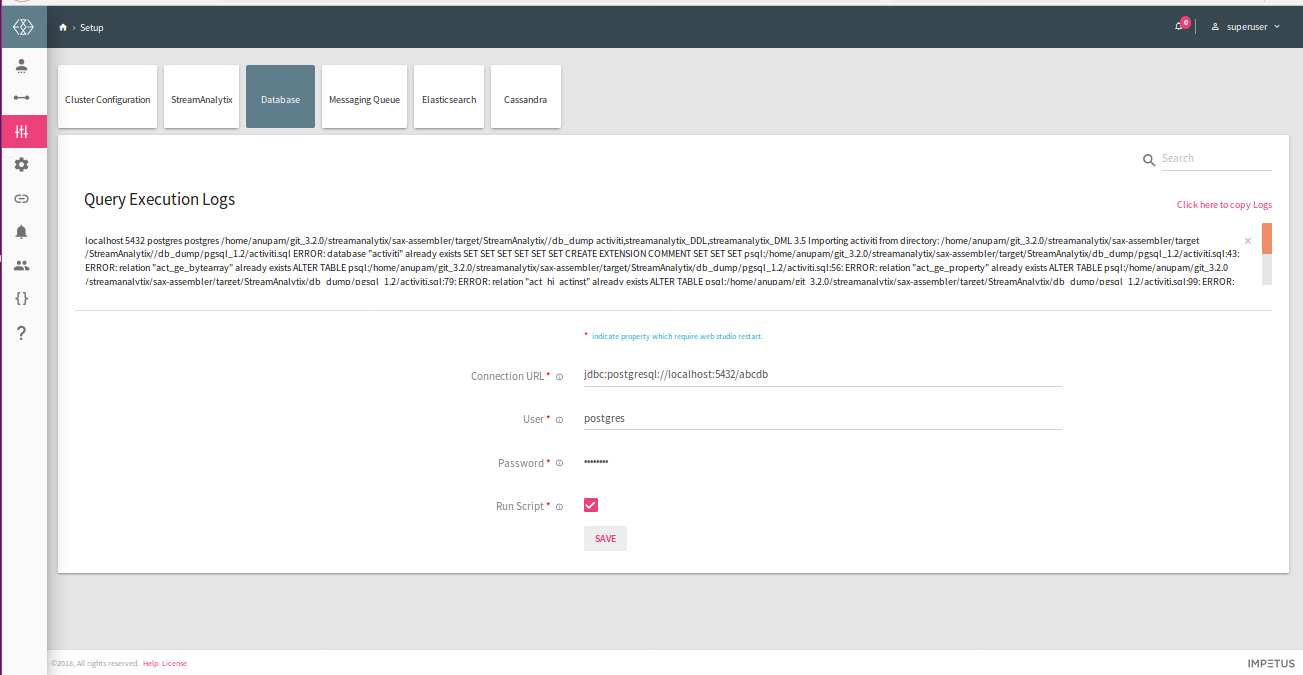

Database

Login to StreamAnalytix and go to Setup, and select Database.





Messaging Queue

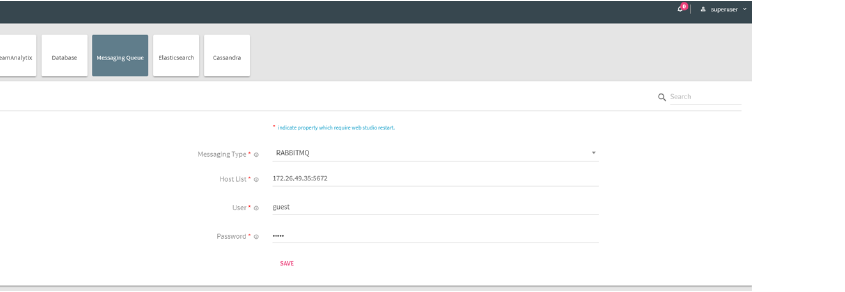

Login to StreamAnalytix and go to Setup and select Messaging Queue.



Elasticsearch

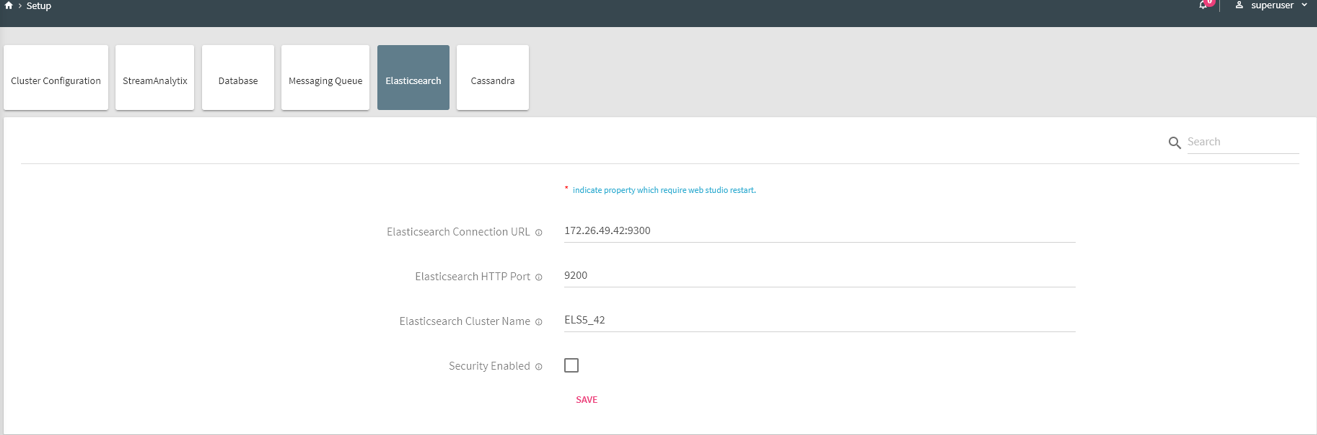

Login to StreamAnalytix and go to Setup and select Elasticsearch. Configure the fol­lowing properties.



Version Control

Login to StreamAnalytix and go to Setup and select Version Control. Configure the following properties.

Restart StreamAnalytix

Please refer to post deployment steps to configure additional optional features in StreamAnalytix.

1. On the Terminal change directory to the StreamAnalytix installation directory and stop StreamAnalytix using the following command.

.

Accept the EULA, upload the license and login in the application.

(The credentials are mentioned above)

Note: If you install StreamAnalytix Webstudio for Apache (embedded mode), upload license again (if prompted).

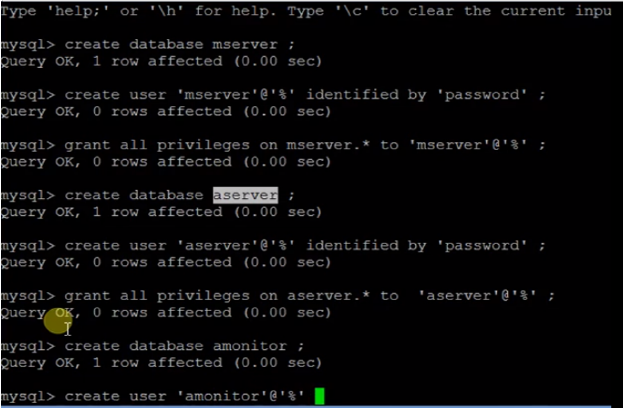

Also, before starting StreamAnalytix, if underlying database is MySQL, then MySQL’s  connection jar should be placed in <StreamAnalytix_HOME>/server/tomcat/lib> and <StreamAnalytix_Home/conf/thirdpartylib>.

Component Versions Supported

The technology stack supported for StreamAnalytix Deployment are as follows



Other services supported:

• Ambari Metrics collector (for HDP only)

• Spark History Server

• Kerberos

Ambari managed HA services supported in StreamAnalytix Deployment

1. Ambari

2. HDFS

Appendix -1 StreamAnalytix Pre-requi­sites

Java 1.8 X

1. Verify that you have a /usr/java directory. If not, create one:

2. Download the Oracle 64-bit JDK (jdk-8u101-linux-x64.tar.gz) from the Oracle download site. Open a web browser and navigate to http://www.oracle.com/tech­network/java/javase/downloads/jdk8-downloads-2133151.html

3. Copy the downloaded jdk.tar.gz file to the /usr/java directory.

4. Navigate to the /usr/java directory and extract the jdk.tar.gz file.

5. The JDK files will be extracted into a /usr/java/jdk-8u101 directory.

6. Create a symbolic link (symlink) to the JDK:

7. Set the JAVA_HOME and PATH environment variables.

8. Run below commands to notify system that new java version is ready for use.

9. Verify that Java is installed in your environment by running the following command.

10. You should see output similar to following:

Access Rights to Livy user

Create a directory on HADOOP if it does not exist, using below command:

Permission 777 required on directories configured in below common.yaml proper­ties:

Run the command:

Login to Ambari and set following property for 'Spark-2' Livy configuration and restart Spark-2 service, as shown below:

Note: Please validate memory of node manager and container; it should be greater than 512 + 384 (75% of 512).

RabbitMQ 3.3.5.

Erlang is required before installing RabbitMQ, use the below commands to do so:

1. Run the following command from:

2. Run the below command to start the RabbitMQ server:

3. Enable RabbitMQ management plugin using the following command:

Troubleshooting: In case of an error

Go to rabbitmq server’s “sbin” folder and execute the script from there.

Example:

Run the following command as root or with sudo

$ ./rabbitmq-plugins enable rabbitmq_management

4. Enable RabbitMQ Stomp adapter using the following command:

5. Configure the adapter plugin:

Now, when no configuration is specified, while enabling Stomp, Stomp Adapter will listen on all interfaces on port 61613 and will have a default user login/passwords, which is guest/guest.

To change default configuration, edit your configuration file (RabbitMQ.config), which contains a tcp_listeners variable for rabbitmq_stomp application.

For example, a complete configuration file, which changes the listener port to 12345, would look like:

6. Enable RabbitMQ Stomp web plugin using the following command:

By default, the Web STOMP plugin exposes both a WebSocket and a SockJS end­point on port 15674.

The WebSocket endpoint is available on the /ws path:

The SockJS endpoint on the /stomp prefix:

7. Restart the RabbitMQ server.

PostgreSQL 10

Configure YUM Repository

In order to prevent PostgreSQL to get installed with older version, you need to add the following line in the appropriate repository configuration file.

File path for making the above entry differs according to the OS:

• File path for CentOS machine: /etc/yum.repos.d/CentOS-Base.repo (in [base] and [updates] sections both)

• File path for RHEL machine:  /etc/yum/pluginconf.d/rhnplugin.conf (in [main] section only)

Install PGDG RPM File

A PGDG file is available for each distribution/architecture/database version combi­nation.

Install postgres repository in the system, use one of the commands below as per the system architecture and operating system.

Install PostgreSQL10 Server

Install the basic PostgreSQL 10 server using below command

Initialize Database

After installing PostgreSQL server, it is required to initialize it before start using it. To initialize database run the below command.

NOTE: In case the above command gives any error, try one of the following com­mands:

Server configuration and Startup

To start PostgreSQL server automatically on system boot, run the following com­mand

Configure Connection

1. Replace the following line written in /var/lib/pqsql/10/data/pg_hba.conf file:

By the following line:

2. Replace the following line written in /var/lib/pqsql/9.3/data/postgresql.conf file:

By the following line:

NOTE: Do not forget to uncomment the above line, it is commented by default.

• Start Server

Start PostgreSQL service using following command.

Verify PostgreSQL Installation

After completing PostgreSQL 9.3 installation on server, perform a basic sanity to ver­ify whether installation has been completed successfully or not. To verify the same, switch to the postgreSQL user from root user (first time only) by the following com­mand:

• Use psql command to access PostgreSQL console.

PostgreSQL User Configuration

Change password of PostgreSQL user by the following command (default password is postgres):

NOTE: Please keep the new password under quotes.

Create New User (Optional):

In PostgreSQL, the default root user is ‘postgres’, if you want to create a new user with login permission, use the following command:

Email Alert Database

1. In <<installationDir>>/db_dump/pgsql_1.2 , you will find activiti.sql .

2. Create a new database for activiti, you will need to point this database while con­figuring StreamAnalytix application.

3. Import <<installationDir>>/db_dump/pgsql_1.2/activiti.sql

Livy 0.4.0

Installation for HDP Cluster

Livy 0.4.0 is packaged with HDP2.6.3 stack as general availability.

Verify LIVY installation by following the below steps:

1. Login into Ambari console.

2. Go to Dashboard and select Spark or Spark2 service from left Pane.

3. For Spark2, 'Livy for Spark2 Server' should be running.

If Livy is not installed, follow these steps to install Livy:’.

1.Login into Ambari.

2.Go to Hosts and select node on which Livy is to be installed.

3.Now click on '+Add' button to install 'Livy for Spark2 Server'

Installation for CDH/Apache Cluster

To build Livy for CDH/Apache cluster use the following link.

• Build Livy manually

For CDH, change the below configuration in <Livy install dir>/conf/livy.conf

Note: If Livy is configured on Cluster/Client mode, then the StreamAnalytix pipelines should be saved compatibly else pipeline will not be submitted to spark.

To enable Livy support, configure the below StreamAnalytix properties in env-con­fig.yaml file.

StreamAnalytix Properties.

In client mode, Livy picks up an application binary from local file system. Set the below property which tells Livy to add a local directory into its white list, else Livy does not accept it.

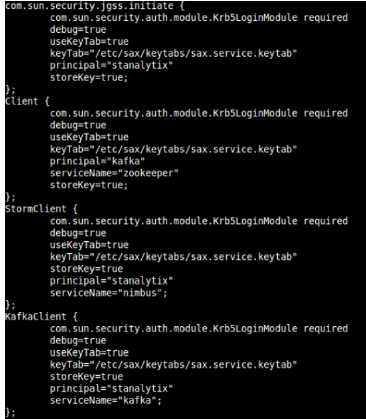

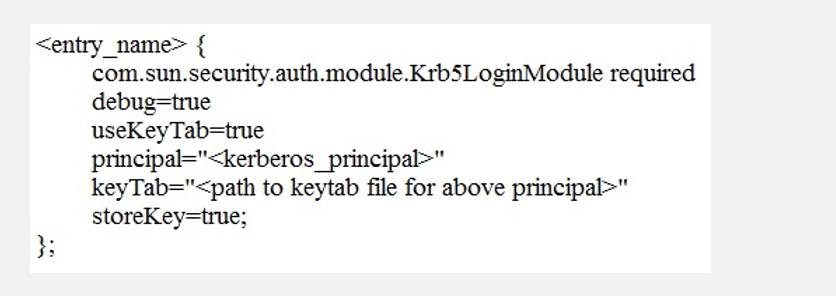

Kerberos Environment with Livy

Points to remember:

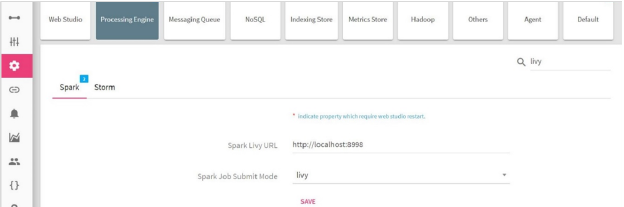

Configure Livy in StreamAnalytix

To enable Livy support, configure the below StreamAnalytix properties in env-con­fig.yaml file.

Elasticsearch 6.2.4

To install Elasticsearch, follow the steps mentioned below:

1. Download Elasticsearch binary (.tar.gz) version 6.2.4 from the below Url:

https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-6.2.4.tar.gz

2. Extract the tar.gz using below command:

Enable SSL in Elasticsearch

To enable SSL, perform the following steps on each node in the cluster:

3. Manually download the X-Pack zip file from the below URL.

https://artifacts.elastic.co/downloads/packs/x-pack/x-pack-6.2.4.zip)

4. Run $ES_HOME/bin/elasticsearch-plugin install on each node in your cluster.

5. Confirm that you want to grant X-Pack additional permissions.

6.  X-Pack will try to automatically create several indices within Elasticsearch. By default, Elasticsearch is configured to allow automatic index creation and no addi­tional steps are required. However, if you have disabled automatic index creation in Elasticsearch, you must configure action.auto_create_index in elasticsearch.yml to allow X-Pack to create the following indices:

<<installationDir>>/<<extractedDir>>/config/elasticsearch.yml:

Generating Node Certificates

7. Create a certificate authority for your Elasticsearch cluster. Substitute <DOMAIN_NAME> with your machine’s domain name and <node1> and <node2> with the node name or IP address of machines which would be a part of Elasticsearch Cluster’:

8. Copy the node certificate to the appropriate locations.Copy the generated .p12 file in a Elasticsearch configuration directory on each node. For example.,/home/es/config/certs.:

9. Add the Elasticsearch certificate in the JAVA cacerts of the machine from where we are trying to connect to the Elasticsearch (i.e. Yarn and StreamAnalytix nodes) using below  command ::

Above command must be run with root or sudo account. It will prompt for destina­tion keystore password if it has been set earlier and source keystore password which is ‘elastic’ in our case.

Enable SSL between nodes in a Cluster

10. Enable TLS and specify the information required to access the node’s certificate. Add the following information to the <<installationDir>>/<<extractedDir>>/config/elasticsearch.yml file on each node. :

11. If you have secured the node’s certificate with a password, add the password to your Elasticsearch keystore: Password what we have set was ‘elastic’. Enter the same when prompted.

Password set was ‘elastic’, enter the same when prompted.

Encrypting HTTP Client Communication

12. Enable TLS and specify the information required to access the node’s certificate.

Add the following information to the <<installationDir>>/<<extractedDir>>/config/elasticsearch.yml file on each node:

13. If you have secured the node’s certificate with a password, add the password to your Elasticsearch keystore:

Password what we have set was ‘elastic’. Enter the same when prompted.

14. Configure additional properties in <<installationDir>>/<<extractedDir>>/config/elasticsearch.yml file under the extracted folder

Note: - Make sure there is a space at the starting of the line (Just remove #, do not remove space).

Elasticsearch nodes join a cluster based on just one property named cluster.name.

For example, if you want to add the node to cluster ‘mass_deployment’, change the value of property ‘cluster.name’ to ‘mass_deployment’ as follows:

This should be same across all nodes of the cluster. This value will be required while configuring Elasticsearch in StreamAnalytix.

The node name should be unique for each ES node in a cluster. This is defined by the ‘node.name’ property.

For example: If user wants to deploy three nodes for the cluster, the names can be ‘node0’, ‘node1’ and ‘node2’.

• node.name: ‘node0’

This should be unique for each node in the cluster

• node.tag: ‘node0’

This should be unique for each node and same as node.name. Also, use the conven­tion node0, node1, nodeN.

• path.data: /path/to/data/dir

This property perform discovery when new node is started. The default list of hosts is ["127.0.0.1", "[::1]"]

• discovery.zen.ping.unicast.hosts: ["<hostname/ip>" ]

Set this property to create a dedicated master-eligible node.

• node.master: true

This property defines Data nodes and it holds data and perform data related opera­tions.

• node.data: true

Locks the memory for better performance of Elasticsearch.

• transport.tcp.port: 9300

• transport.bind_host: <hostname/IP>

• transport.host:<hostname/IP>

• network.host: hostname/IP>

• http.port:9200

Note: For viewing Monitoring Error add the following property in Elasticsearch.yml.



15. Specify heap size for Elasticsearch by adding the below line to the file ‘<<installa­tionDir>>/<<extractedDir>>/config/jvm.options’:

16. Make sure to increase the limit on the number of open files descriptors for the user running Elasticsearch to 65,536 or higher. Run below command as root before starting Elasticsearch, or set nofile to 65536 in /etc/security/limits.conf.

17. Set the passwords of the built in elastic user. You must explicitly set a boot­strap.password setting in the keystore before you start Elasticsearch.

For example, the following command prompts you to enter a new bootstrap pass­word.

The above password you set will be required to login to Elasticsearch cluster URL using ‘elastic’ as superuser.

18. Change ownership of Elasticsearch installation directory and start the Elastic­search node by logging in as non-root user. This is done to enable memory locking as follows:

19. To enable Elasticsearch plugin, open Google Chrome browser and install exten­sion ‘elasticsearch-head’.

20. To access Elasticsearch cluster, click on the ‘elasticsearch-head’ plugin icon on your browser and enter the cluster details as below and hit ‘connect’:

Couchbase-server-community-5.1.1

To install Couchbase, follow the steps mentioned below:

1. Download the rpm file from below URL.

wget  https:// packages.couchbase.com/releases/5.1.1/couchbase-server-com­munity-5.1.1-centos7.x86_64

2. To install Couchbase, run the below command:

rpm --install couchbase-server-community-5.1.1-centos7.x86_64.rpm

The command will install the Couchbase DB and start the service. After running the command above, you will receive the following URL in output:

http://<<HOSTNAME>>:8091/

Open the URL in browser then follow the steps to create the cluster.

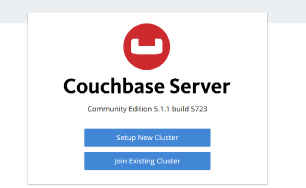

Step1: Click on the Setup New Cluster

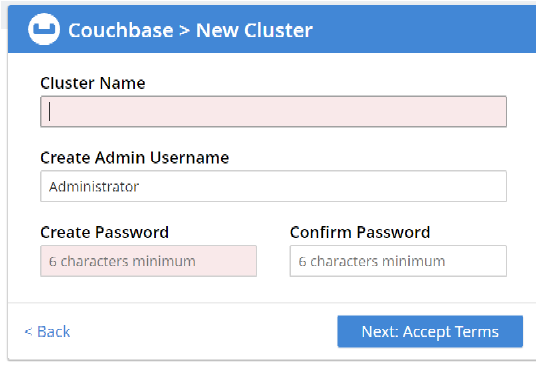

Step 2: Provide the Cluster Name, Username and Password, then click on Next.



Step 3: Accept the terms and conditions, and click on Finish with Defaults. You can also configure Disk, Memory and Service, as per your requirements.

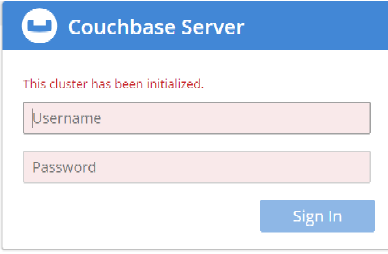

Step 4: Cluster setup has been completed. Now, login with the username and pass­word set up in previous step.



Appendix-2 Post Deployment Steps

Dashboard Installation

1. Find the dashboard folder inside STREAMANALYTIX_HOME and untar dash­board.tar.gz file using command: tar xvf dashboard.tar.gz. (On the machine where StreamAnalytix admin UI is not installed)

2. Create database named: dashboardrepo in postgres db.

3. Set the below lines in /dashboard/reportengine/config/ReportEngine.dat and change the properties in <USER>, <PostGres_IP>, <PASSWORD> below with actual values.

4. Steps to change the default port of Jakarta server:

a. Copy folder sax-dashboard from [Dashboard_installation_path]/jakarta/webapps to [SAX Tomcat_Home]/webappsl

b. Start Intellicus Report Server and Web Server.

c. Enable Dashboard in StreamAnalytix, set below properties in env-config.yaml

Note: Properties for enabling dashboard in StreamAnalytix need only be set on the machine that is hosting the StreamAnalytix web admin.

Location: STREAMANALYTIX_HOME/conf/yaml/env-config.yaml

NOTE: Replace <IP> and <PORT> with dashboard client IP and port.

Location:

STREAMANALYTIX_HOME/conf/common/dashboard-int/ReportClient.properties

STREAMANALYTIX_HOME/conf/yaml/common.yaml

d. Restart the StreamAnalytix admin server (Tomcat)

e. Log in to StreamAnalytix as the Admin.

Dashboard Synchronization Steps:

Perform the below synchronization steps in order to sync the existing users and other components with Dashboard.

NOTE:

• If the Dashboard is set up after creation of multiple users, migration steps are man­datory in order to sync the users with dashboard.

• Make sure to apply step-(e) i.e. log in with your StreamAnalytix admin credentials, before sync.

1. Open REST Client on browser.

2. Enter the below URL in address bar:

http://<StreamAnalytix_IP>:<PORT>/StreamAnalytix/dashboard/sync

Use HTTP method as GET.

3. Use basic authentication and add username: superuser and password as supe­ruser.

4. Click on SEND button.

Enable SSL on Kafka

To install Kafka, follow the steps mentioned below

1.  Download Kafka binary (.tar.gz) version 0.10.2.1 from the below URL.

https://www.apache.org/dist/kafka/0.10.2.1/kafka_2.12-0.10.2.1-site-docs.tgz

2.  Extract the tar.gz using below command:

To enable SSL on Kafka, follow the steps mentioned below:

Perform the following steps on each node in the cluster:

Generating Node Certificates:

3.  Create a certificate authority for your Kafka cluster. Substitute <DOMAIN_NAME> with your machine’s domain name on all nodes with Keystore password and validity.

NOTE: Passwords should be same   .

4.  On all the nodes, rename keystore file to jks file..

5.  Generate self signed certificate on all the nodes.

6.  Rename selfsigned.cer to selfsigned.pem

7.  Copy the selfsigned.pem file from all the nodes to one of the Kafka server where the trust store file will be generated.

8.  Import the selfsigned certificate to truststore on node where trust store file will be generated.

9.  Copy the truststore files from the server to all the other nodes in the same path..

10.  Place the kafka.jks in the same path of the certificate. Change the file permisions of Kafka.jfs and truststore.jks on all nodes.

Configure SSL on all nodes of the Kafka Cluster

1.  Enable TLS and specify the information required to access the node’s certificate.

Add the following information to

 <<instllationDir>>/<<extractedDir>>/config/server.properties file on each node.

2.  Configure more properties in

<<installationDir>>/<<extractedDir>>/config/server.properties file under the extracted folder

Note: - brokerid should be different for each kafka broker

To start the Kafka servers on all nodes.

Apache Airflow Installation

Airflow version: 1.10.1

1. Create a folder, that will be used as Airflow home (with sax user)

2. Create folder dags

3. Login with root user, open .bashrc file and add the following property in it

:

4. Login with StreamAnalytix user and open .bashrc file and add following in it

5. Install Airflow using the following command (with root user)

6. Initialize Airflow database (with StreamAnalytix user)

Note: Step 7 and Step 8 will be performed after Sub-Package Installation, Configura­tion and Plugin Installation is successfully completed.

7. Start Airflow with StreamAnalytix user (Configurationprovide port_number)

8. Start Airflow scheduler

Sub Packages Installation

To install sub packages (with root user).

Note: Supported file system and database is HDFS and MySql.

For more details, please refer link:

 https://airflow.apache.org/installation.html

Configuration

Go to $AIRFLOW_HOME and open airflow.cnf file, and change the following proper­ties:

l default_timezone = system

l base_url =  http://ipaddress:port (i.e. http://172.29.59.97:9292)

l web_server_host = ipaddress

l web_server_port = port (i.e. 9292)

l Add SMTP details for email under section:

     [smtp] in config file.

   Uncomment and provide values for the following:

• smtp_host

• smtp_user

• smtp_password

• smtp_port

• smtp_mail_from

l catchup_by_default = False

Plugin Installation

Steps to add StreamAnalytix Airflow Plugin in Airflow

1 Create plugins folder in Airflow home (*if it does not exits) i.e. $AIRFLOW_HOME/plugins

2 Untar <sax_home>/ conf/common/airflow-plugin/sax_air­flow_rest_api_plugin.tar.gz

3 Copy sax_airflow_rest_api_plugin/* to airflow plugin folder

Authentication

Token-based authentication is supported.

Provide token in the request header. Same token key and value will be provided in the Airflow config file.

Add the following entry in $AIRFLOW_HOME/airflow.cnf file

Here,

l <sax_request_http_header_token>: Replace with key used in request header for token.

l <token>: Replace with token value

To configure Airflow in StreamAnalytix, go to the Configuration section in user guide. link.

Installing Jupyter and Sparkmagic on Centos/RHEL

You can install Jupyter using Docker or on the Host Machine.

To Install using Docker, follow the below link:

https://hub.docker.com/r/streamanalytiximpetus/jupyter

To Install on Host Machine, follow the below steps:

Pre-requisite

Jupyter requires Python 2.7 to be installed. Please make sure to install Python 2.7 before proceeding.

In addition, following libraries are required

Installation

Login with root user and install pip using following command.

Jupyter

To install Jupyter, login with root user and use the following command:

If following error occurs while installing jupyter

ERROR: ipykernel requires Python version 3.4 or above.

Then first run following commands:

Now install Jupyter again.

As a root user, run the following command:

As a ‘streamanalytix’ user, run the following command:

It will create a jupyter_notebook_config.py file. You can uncomment and provide parameters in that file.

Location of config file is Jupyter installation folder (the path is mentioned below).

• ~/.jupyter/

Once the config file generated, un-comment and change following entries in file:

Run the following commands as StreamAnalytix user:

To start Jupyter service, run the following command with sax user:

Install StreamAnalytix Python Library (on node where Jupy­ter is running)

A python library is written to provide functionality of read source, fetch data from source and create data frame in notebooks.

Dependent Libraries

Run commands as a root user. It will install all the pre-requisites python libraries.

Note: If any additional python library needed, then install it on all nodes.

Follow the steps below to Install Streamanalytix Python Library on node where Jupyter is running:

Step 1: Go to ‘streamanalytix’ user’s home folder.

Create directory named  .streamanalytix and create a sax.config file inside it (as shown below)

Add following content in sax.config file.

Change <sax_url> entry with StreamAnalytix hostname/ipaddress and port (i.e http://hostname:port).

By default user can keep <ssl_enable> as FALSE.

If SSL is enable (i.e. Streamanalytix app   lication is running with https), then change <ssl_enable> as TRUE and change <certificate_path> with location of certificate that will use to access application.

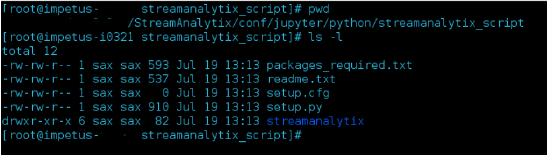

Step 2: Open a terminal, login as root and change directory to <StreamAnalytix_in­stallation_dir>/conf/jupyter/python/streamanalytix_script.

Step 3: Run below command.

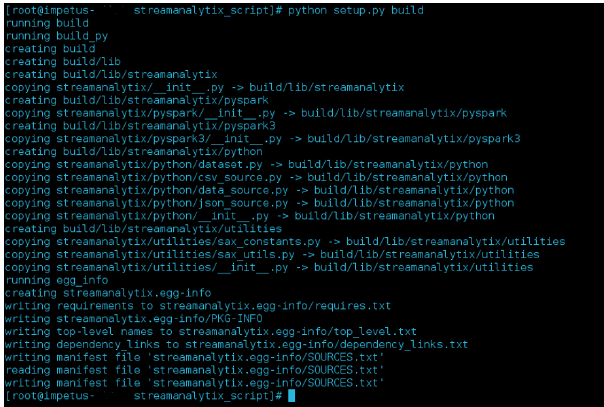

This will build the library as shown in screenshot below:

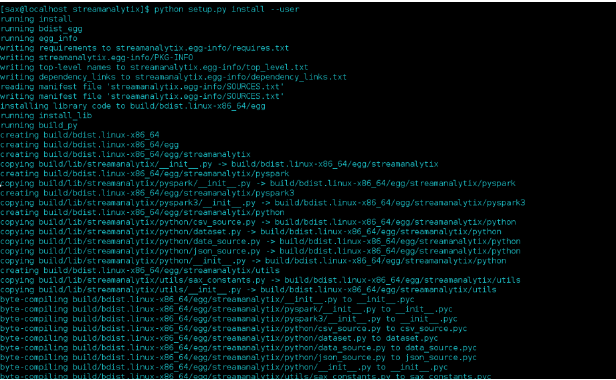

Step 4: Now run install command  as root user.

It will install required packages if not available and install streamanalytix python library

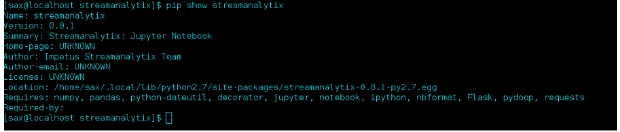

Step 5: Check installation folder of streamanalytix using command pip show Strea­mAnalytix.

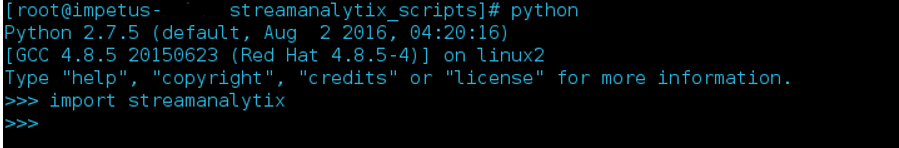

Step 6: Now to check whether streamanalytix library is available in python environ­ment, go to python console and run the command import streamanalytix.



If StreamAnalytix is not properly installed, you will get an error.

Auto create Notebook using REST API

1. On node where Jupyter is running, login using the ‘streamanalytix’ user and navi­gate to folder <<StreamAnalytix_Installation_Dir>>/conf/jupyter/python/autonotebook.

 2. Run the auto_create_notebook.py script using following command.:

It will start service on port 5000. If you want to change port then give port number as argument i.e.: python auto_create_notebook.py port=5004.

By default, it will create log file at folder from where script is started with name auto_create_notebook.log. If you want to change log file path, then while starting script, give an argument as log file path and name.

Example:

Note: Port and Logfile are optional.

To configure Jupyter in StreamAnalytix, go to the Configuration section in user guide. link.

Sparkmagic

Note: Make sure Livy is installed to avail Sparkmagic.

To install Sparkmagic, login with root user and run the following command:

References: (https://github.com/jupyter-incubator/sparkmagic)

For validating, the location of Sparkmagic, run the following command:

Now, execute below command:

Then run the following commands to install kernels, this will activate Scala, Pyspark and Python kernels in Sparkmagic for further use:

Configuration for StreamAnalytix user

Login with StreamAnalytix user and follow below steps:

1. Create directory ~/.sparkmagic if does not exist.

2. create config.json file at path ~/.sparkmagic and add details as given in example_­config.json.

(https://github.com/jupyter incubator/sparkmagic/blob/master/sparkmagic/example_config.json

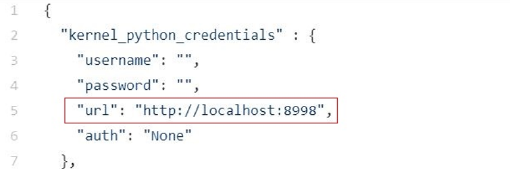

3. Provide Livy URL under all kernels (i.e. kernel_python_credentials etc.) in con­fig.json (default is localhost)

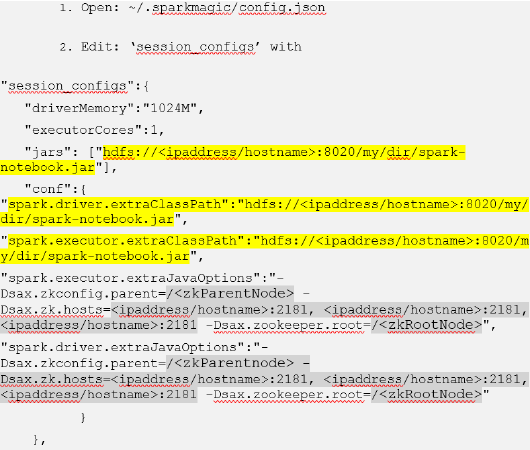

Configuration to add a custom jar in Notebook class path (StreamAnalytix user)

1.Upload spark-notebook.jar to Hadoop file system of the cluster.

2. Provide uploaded jar location in file ~/.sparkmagic/config.json under below prop­erties (highlighted in yellow):

• jars

• conf > spark.driver.extraClassPath

• conf > spark.executor.extraClassPath

3. Provide ZooKeeper entries in file ~/.sparkmagic/config.json under the following properties(highlighted in grey):

• spark.executor.extraJavaOptions

• spark.driver.extraJavaOptions

These Zookeeper entries are present at the following location:

    <<Streamanalytix_Installation_Dir>>/conf/config.properties

SparkMagic Installation and configuration ends here. To ensure, restart Jupyter ser­vice.

Post Installation

After installation is complete, make sure that following services are running:

l Jupyter notebook on port 8888

l Auto create notebook service on port 5000

Troubleshooting

1. If following error occur while opening pyspark or scala notebook:

The code failed because of a fatal error:

Failed to register auto viz for notebook.

First, check pandas version using command pip show pandas. If it is 0.23, then downgrade it to version 0.22 using commands

Now, open config.json file at path ~/.sparkmagic . Search for entry “use_auto_viz” and change its value to false.

2. If notebook takes time to create spark session in pyspark and scala notebooks and session is not up in 60 seconds, then open config.json file at path ~/.sparkmagic. Search for entry “livy_session_startup_timeout_seconds” and increase number of seconds (i.e 120).

3. Also please make sure that configurations given in config.json file at path ~/.sparkmagic  should be syntactically correct, otherwise sparkmagic library will fail to parse this json and will not be able to use pyspark and scala notebooks.

Installing Cloudera Navigator (optional for CDH Cluster only)

 1. Open the Cloudera Manager UI and click on ‘Cloudera Management Service’ as shown below.

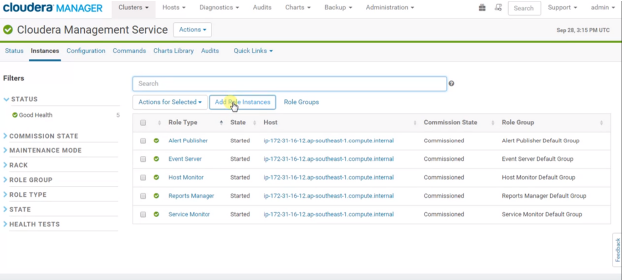

 2. Step1 will open the below UI. Now, click on Add Role Instances.

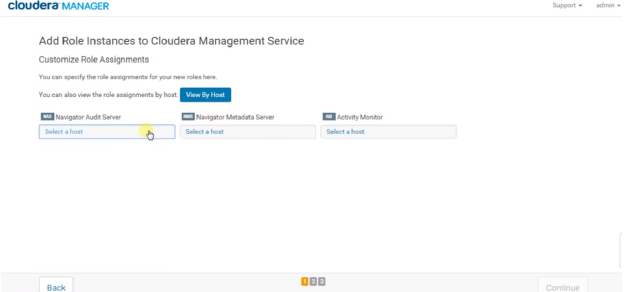

 3. Step 2 will open the below UI where you must select the hosts for Navigator Audit Server, Navigator Metadata Server and Activity monitor, and click Continue.



4.You need to create the databases for above services if we are going with MySQL database. For Postgres, it gets created automatically but it is not recommended for production environment.

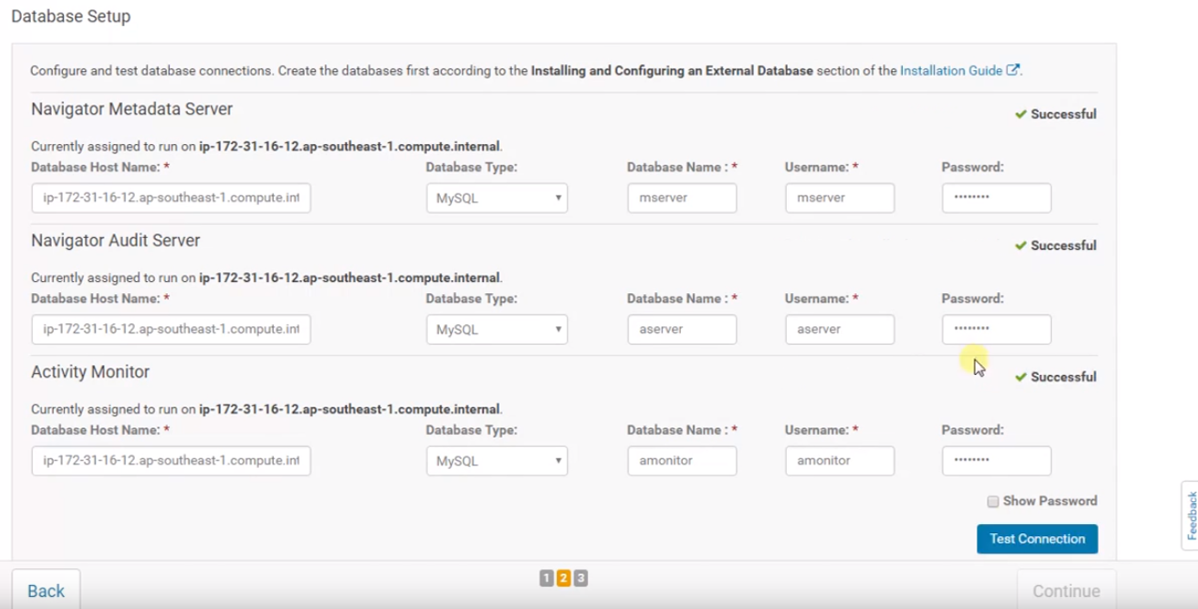

5.Connect to the databases and check for the connectivity of the databases then click continue.



6.Next you need to start the below  in specified order.

a. Audit server

b. Metadata server

c. Activity Server

7.Go to Navigator Metadata Server and click on the ‘Cloudera Navigator’ shortcut shown below.

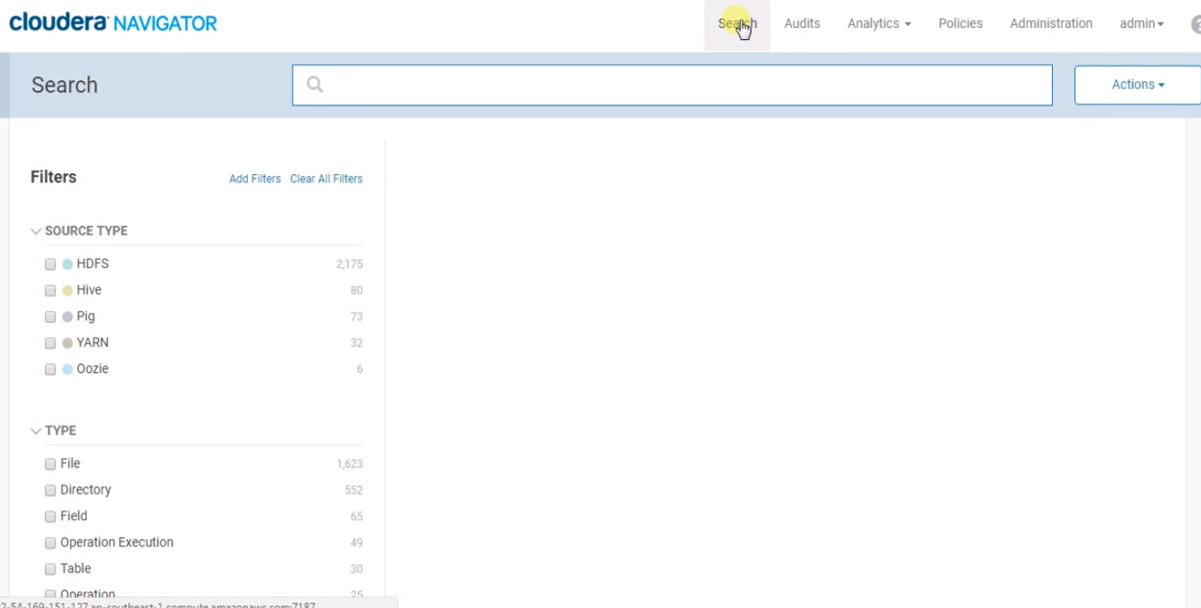

8.Login into the Cloudera Navigator with username: admin and password: admin



Configure StreamAnalytix for Kerberos (Optional)

Prerequisites

• Make sure that you have an Existing MIT Kerberos

• In addition, a setup of Kerberos Enabled CDH cluster.

Steps to setup StreamAnalytix for Kerberos

1. Create two principals, one for StreamAnalytix user and one for Kafka User using kadmin utility. The Principals will be “headless” principals. For example, if ‘sanalytix’ and ‘kafka’ are the streamanalytix and kafka users respectively, then run

2. Use the kadmin utility to create keytab files for the above principals, using:

Note: Also ensure that the keytabs are readable only by the StreamAnalytix user.

Example:

3. Create a JAAS configuration file named keytab_login.conf with the following sec­tions:

com.sun.security.jgss.initiate (For HTTP client authentication)

• client (For Zookeeper)

• StormClient (For Storm)

• KafkaClient (For Kafka)

Each section in a JAAS configuration file while using keytabs for Kerberos security has the following format:



Shown below is the sample keytab_login.conf



4. Now, move the keytabs and keytab_login.conf to $SAX_HOME/conf/common/Kerberos folder and copy the files to

          $SAX_HOME/conf/thirdpartylib folder.

   Also copy Kafka’s server.properties file to $SAX_HOME/conf/common/Kerberos.

    Note: Also, replace $SAX_HOME with the path of StreamAnaytix’ home directory.

5. Add the StreamAnalytix user to the supergroup of the hdfs user on all nodes.

6.  On HBase master node, use kinit using HBase user and grant the StreamAnalytix user the read, write and create privileges as follows:

Note: Replace $HBASE_HOME with the path to hbase installation folder. ‘hbase’ is the user through which HBase is deployed.

7.  In hbase shell run grant ‘sanalytix’, ‘RWC’ where sanalytix is the StreamAnalytix user.

8. Grant cluster action permission on kafka cluster. Run the following command on a kafka broker node:
